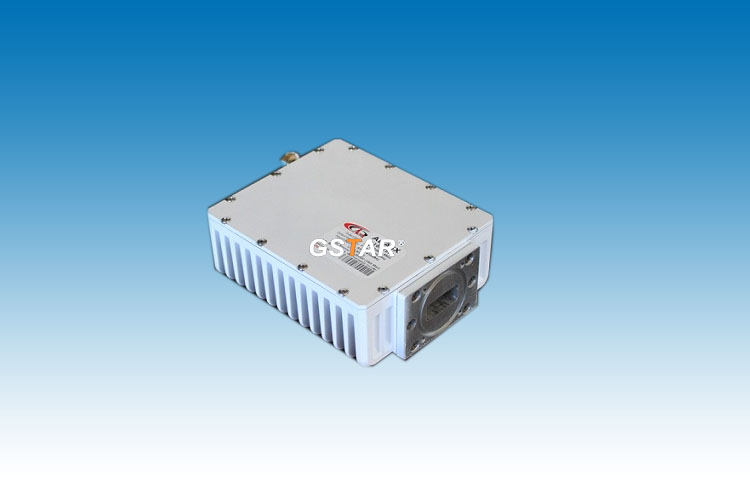

產品名稱：X-Band Block Up Converter  X波段功率放大器BUC

產品型號：ABA5X / ABA5XF

產品概述：This smallest and lightest 5W L-To X-Band Block UpConverter is based on GaN technology. High powereffi ciency resulting in the low power consumption

產品特點：

Output frequency 7.90 - 8.40 GHz
 Local oscillator 6.95 GHz
 Based on GaN technology which enables higheffi ciency, low power consumption and high reliability
Incomparable low power consumption (33W max.)
 Auto-ranging powering option 15-28 VDC
 Internal 10MHz high stability reference (optional)
 Digital temperature compensation
 Field-exchangeable (F/N) IF connector
 Power and lock status LED
 RoHS compliant
 Three-year warranty

產品選型指南

ABA5X	7.90 to 8.40 GHz	6.95 GHz	950 to 1,450 MHz	5W (+37 dBm min.)	N-type
ABA5XF	7.90 to 8.40 GHz	6.95 GHz	950 to 1,450 MHz	5W (+37 dBm min.)	F-type

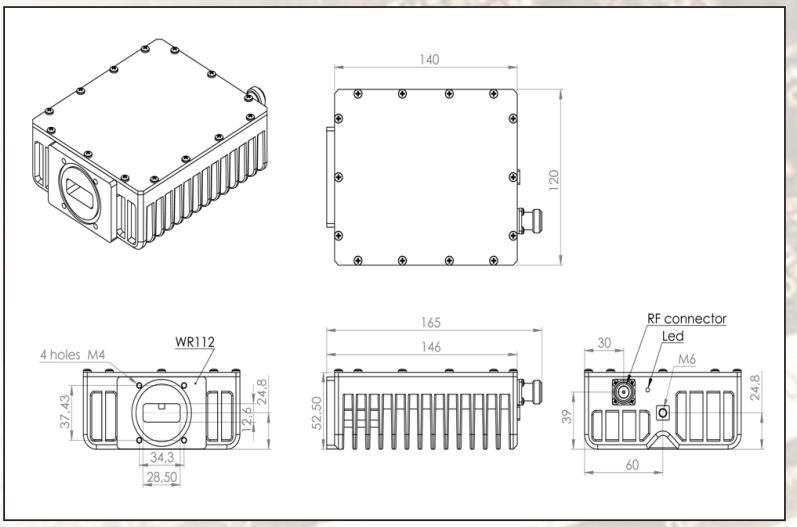

產品外形：

技術數據：
